ToolShed Rotating Laser Level Kit

Name: ToolShed Rotating Laser Level Kit
Brand: ToolShed
SKU: TSRLKIT
Price: 999.00 NZD
Availability: InStock

Code:

TSRLKIT

5 Stars 4 Stars 3 Stars 2 Stars 1 Star

(1 review)

Check availability in store

NOW:

$999.00 Inc GST

Description

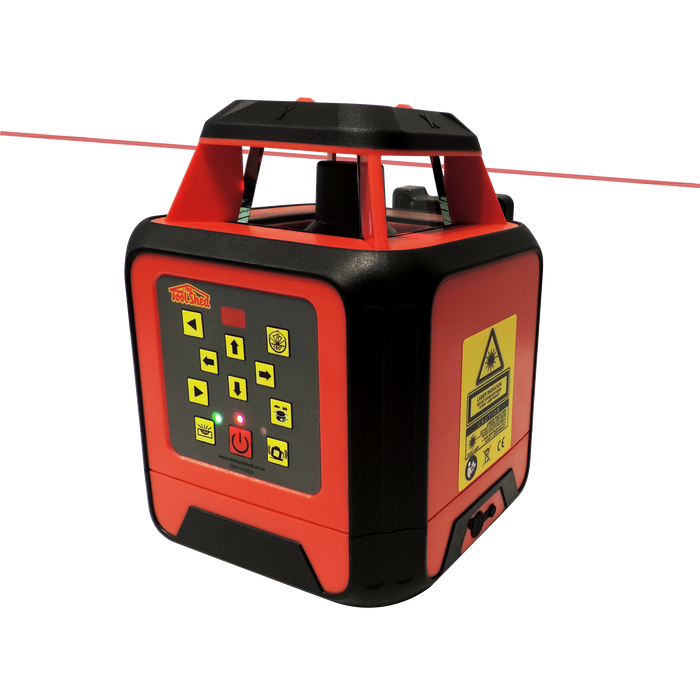

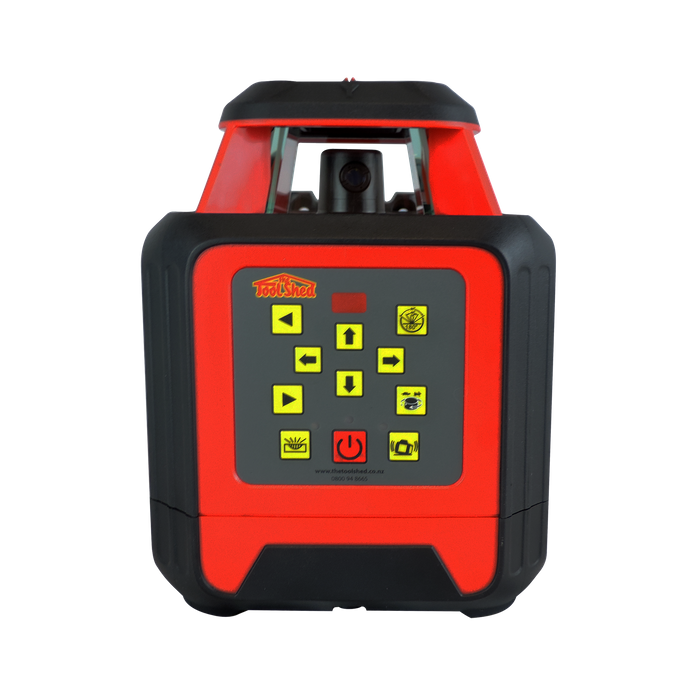

ToolShed Self Levelling Rotary Laser Level kit.

The ToolShed Laser level kit is a high-quality laser level that is perfectly suited to both horizontal and vertical marking in construction and during finishing works; for installing utility lines, floors and wall marking, installation of ceiling and ventilation systems, land planning, marking curvilinear surfaces, carrying out finishing works, furnishing of entrances and exits under slope and pretty much anything else you can do with a laser.

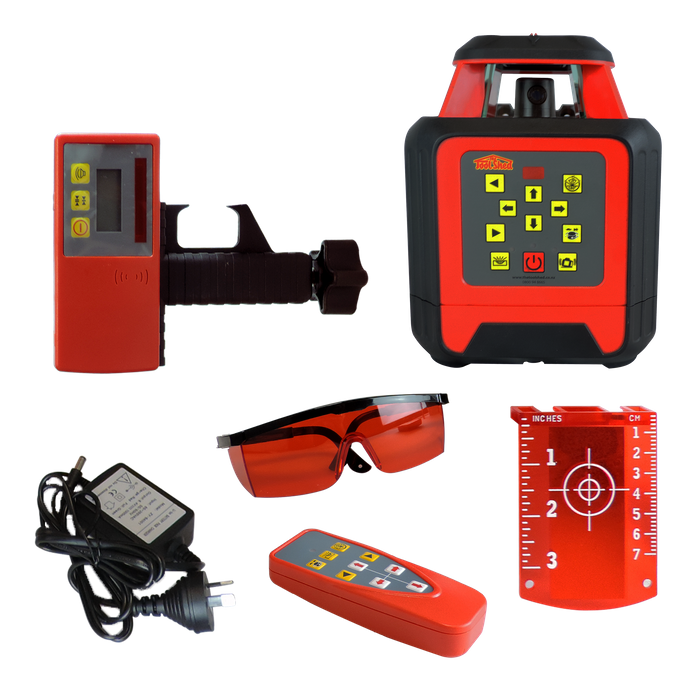

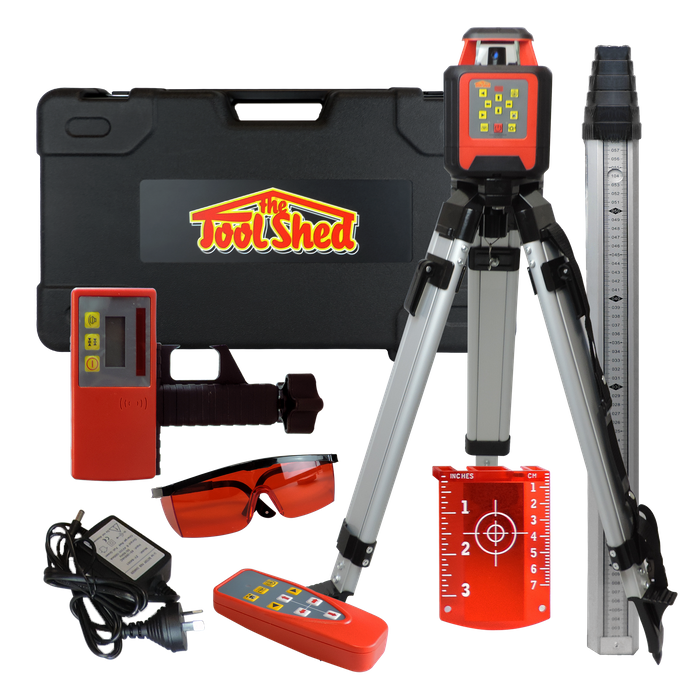

This kit includes the following

-Self levelling rotary laser lever
-3m sectional Staff
-1m adjustable Surveyor's tripod
-Laser detector with adjustable mounting bracket
-Remote Control
-Lithium-ion battery pack and charger

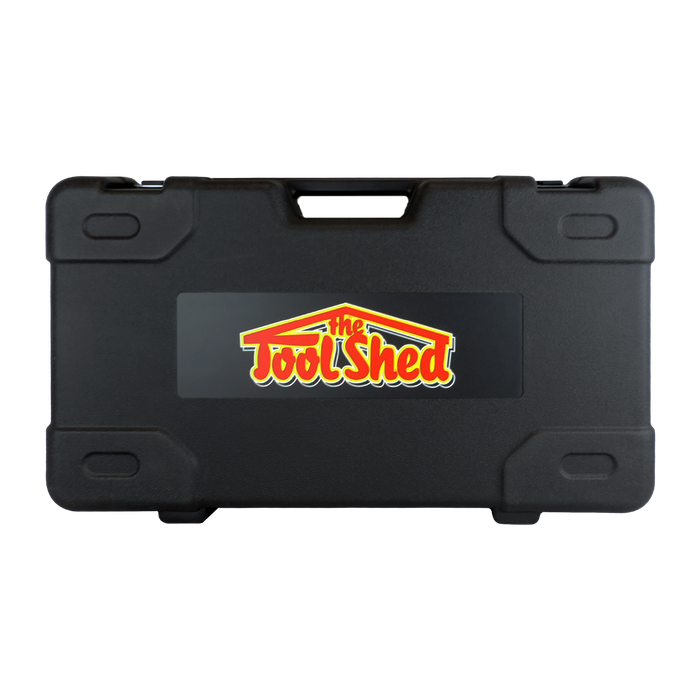

-Blow mould plastic carry case with shock proof foam inserts

This level provides the operator with a no fuss self-levelling system powered by servo drives, if the machine is knocked or pushed too far out of level, the unit will stop and re-level itself automatically.

You can manually set this instrument's slope angle adjustment in the X and Y axis within the range of 5 deg. making it possible to plan the level of the slopes in horizontal plane in all directions.

Adjustable laser rotation speed form 0 - 600rpm lets makes the beam easier to see when not using a receiver.

This instrument also features scan mode for operating within a certain sector. The scan mode can be set anywhere from a dot up to 180 deg. This is great for drawing lines for marking out tiles. All of these features can be controlled from the hand held remote.

This laser will work up to 500m (diameter) with the receiver and can be operated with a remote control (included)

Also included is a side and bottom universal mount to attach to a tripod.

Features:
-Working diameter of up to 500m with the use of the receiver
-Self levelling in horizontal and vertical modes
-Level accuracy of +/- 1.5mm over 10m
-X and Y axis slope adjustment up to 5 degrees
-Fitted with a Lithium ion 7.4-volt rechargeable battery offering up to 40 hours run time
-Powerful red laser diode, 635nm less than 1 mW
-Kit comes complete with Laser, staff, tripod, detector, remote, battery, charger and carry case

Specifications:
Working range with receiver (diameter) - 500 m
Accuracy- +/- 1.5 mm/10m
Projection of laser - 1 line 360 deg.
Levelling modes - Horizontal and Vertical - Automatic
Thread - 5/8"
Laser class - 2
Laser diode - 635 nm, less than 1 mW
Dust water protection - IP 55
Power supply - Li-ion 7.4v 4000mAh rechargeable
Run time - 40 hours (approximately)
Dimensions - 780mm x 200mm x 460mm
Weight - 11.3 kg
