ToolShed Plate Compactor 80kg

Code:
TSPC7
(0 reviews)
Check availability in store
WAS:
$1,499.00 Inc GST
NOW:
$1,299.00 Inc GST
Sale Ends 31/12/24

Description

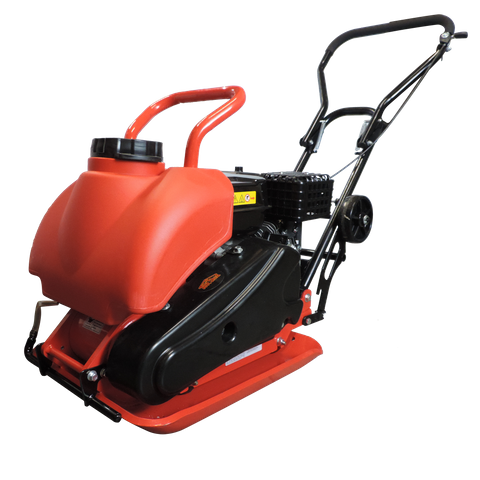

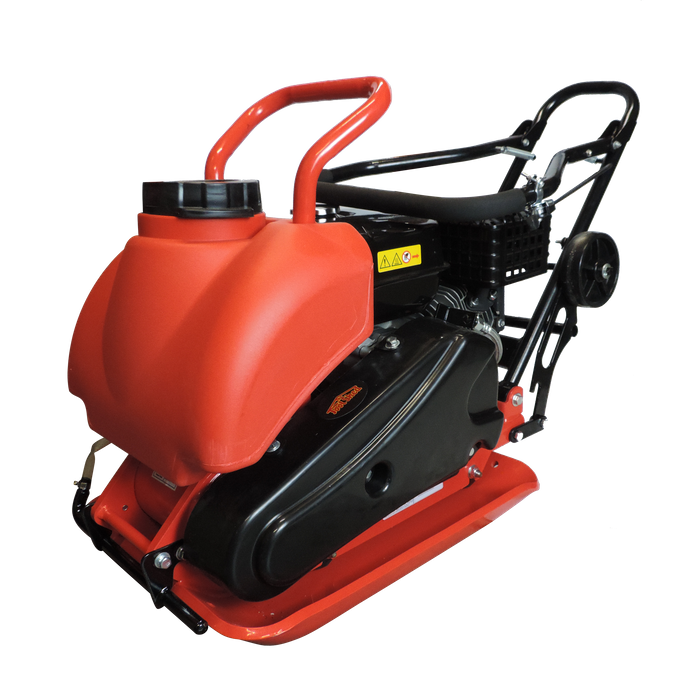

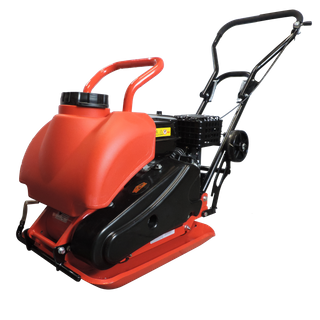

ToolShed Plate Compactor - 80Kg

The ToolShed 80kg Plate Compactor is powered by a very reliable 7hp, easy to start, 4 stroke petrol engine. The centrifugal clutch helps control the idle and movement of the compactor, which has a forward speed of up to 15m per minute. The plate on this machine measures 540mm x 420mm. The exciter runs at 5,500 vibrations per minute, offering an output force of 13,000N. Handles are easily folded down for transport and are fitted with rubber shock absorbers for comfortable operation over longer periods. This compactor features wheels that fold under the machine, allowing you to move it around easily.

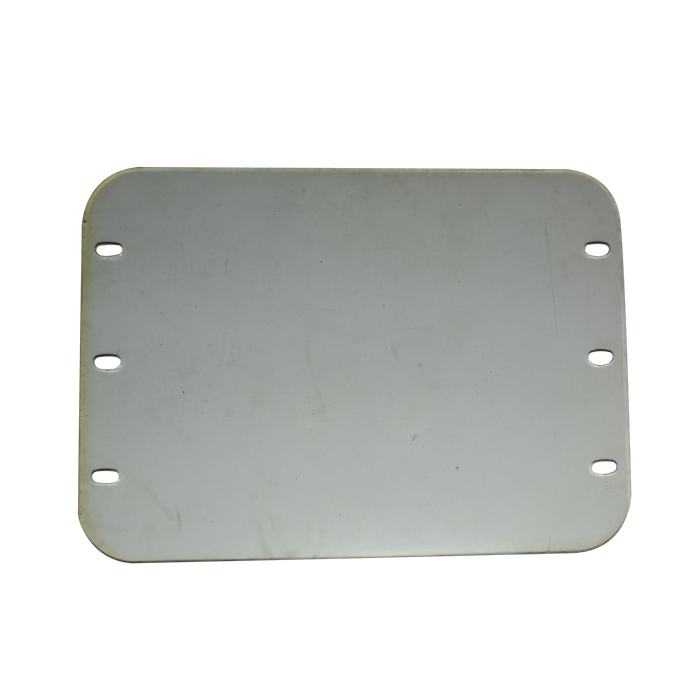

This compactor includes a rubber base pad and water tank - both essential to getting the job done right. The base pad is ideal for compacting cobbles, so the steel base doesn't crack or break them. This rubber pad is 5mm thick. The water tank is useful for wetting the substructure. This helps with compaction and helps avoid hot mix sticking to the plate when it is being compacted.

Features
- Reliable 6.5hp, easy to start, 4 stroke petrol engine
- 5500 vibrations per minute, offering an output force of 13000N
- Rubber pad to protect cobbles when compacting them
- Water tank for wetting substructure to help with compaction and avoid hot mix sticking to the plate

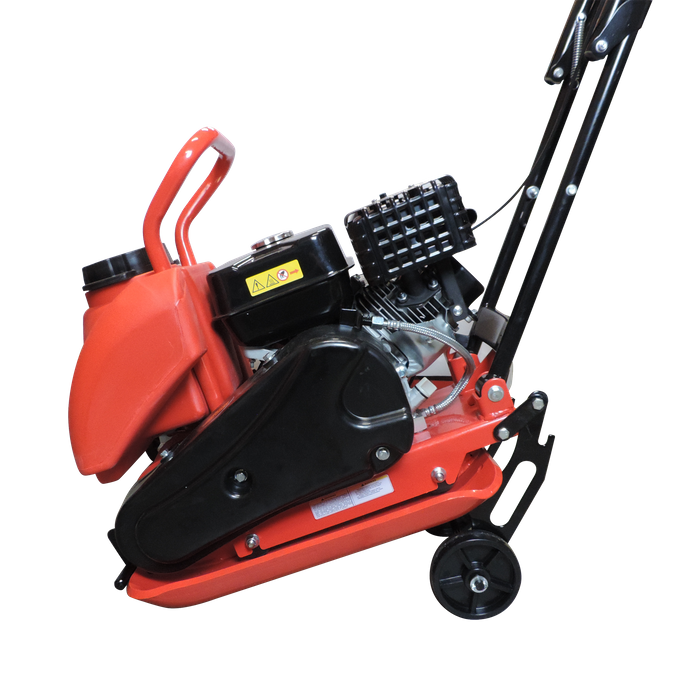

- Wheels that fold under the compactor for easier manoeuvrability
- Easy fold handles with rubber shock absorbers for comfortable grip

Specifications
Gross Weight - 80Kg
Engine - 6.5HP 4 stroke petrol
Travel Speed - 15m per minute
Exciter Speed - 5,500 VPM
Centrifugal Force - 13,000N
Plate Size - 540 x 420mm
