ToolShed Midi Wood Lathe 4 Jaw Chuck 100mm

Code:
TSL03C
WAS:
$199.00 Inc GST
NOW:
$149.00 Inc GST
Sale Ends 26/12/24

Description

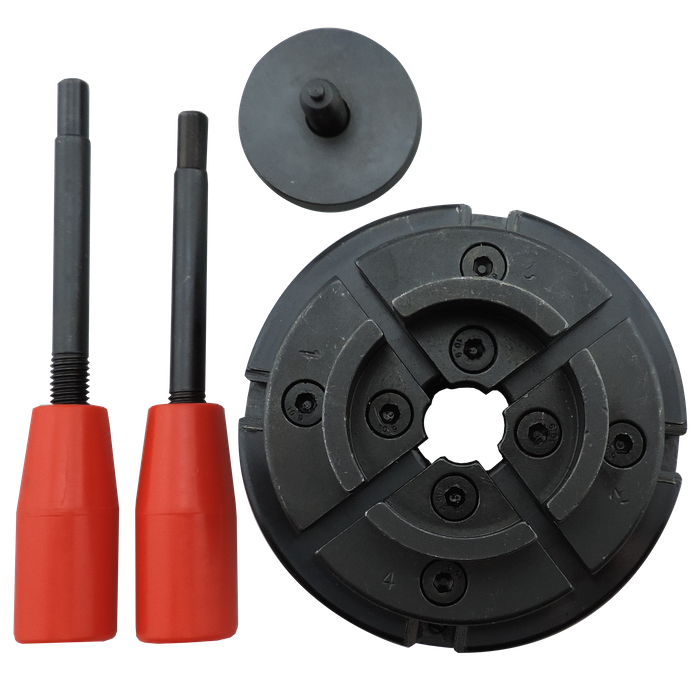

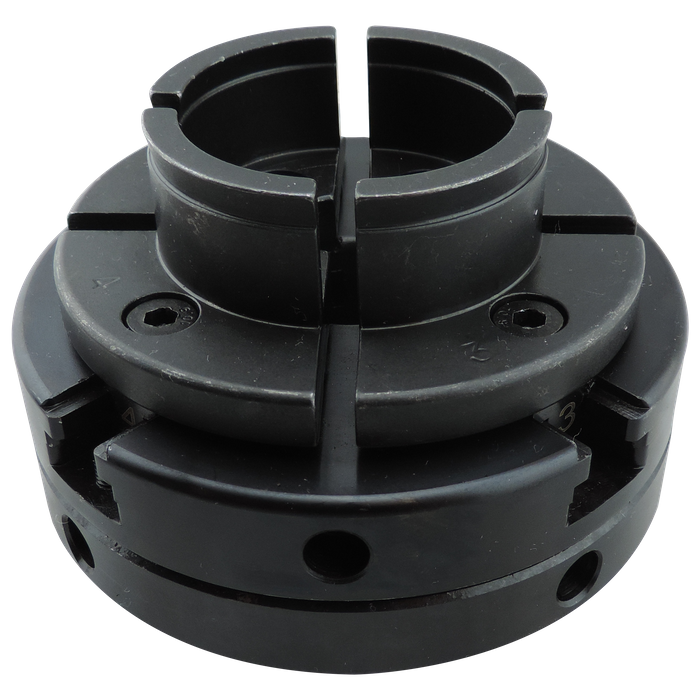

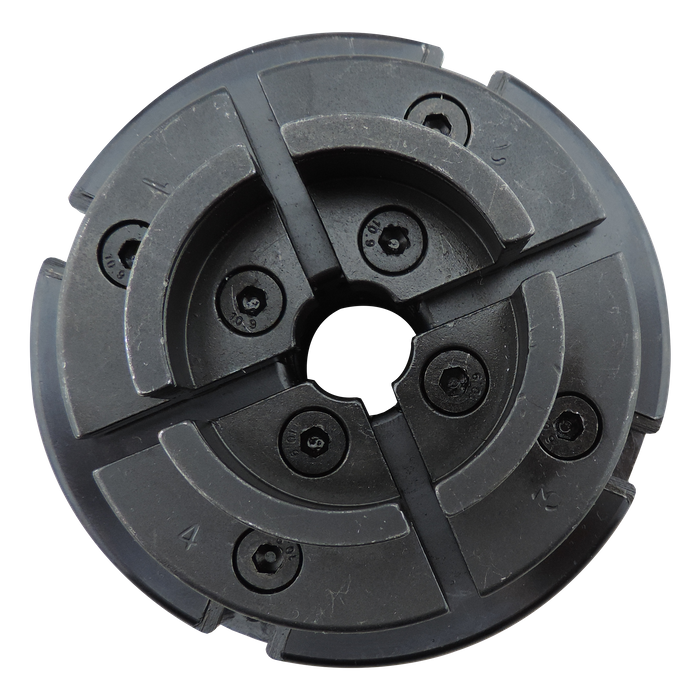

ToolShed 4 Jaw Self Centering Wood Lathe Chuck

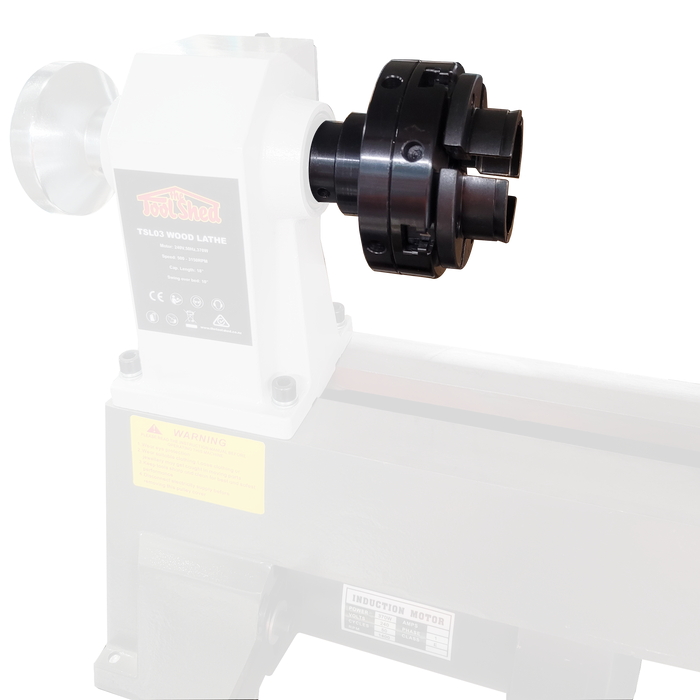

Designed to be used with the ToolShed Midi Wood Lathe (TSL03), this chuck comes with a 1-inch x 8 TPI thread and will screw directly onto the TSL03 lathe spindle, so you can operate the lathe with a 4-jaw chuck. Great for clamping different sized and profiled timber for various turning applications, this chuck allows you to clamp your work piece internally or externally depending on your requirements. The chucks internal clamping range is from 40 - 65mm round and 30 - 55mm square, with an external clamping range of 50 - 85mm round.

Features
- 4 jaw self centering wood lathe chuck
- Comes with a 1-inch x 8TPI thread suitable for the TSL03 wood lathe
- Internal clamping range from 40 - 65mm round and 30 - 55mm square
- External clamping range from 50 - 85mm round

Specifications
Chuck Diameter - 100mm
Clamping Method - 2x levers
Spindle Thread - 1-inch x 8TPI
Minimum Internal Clamping Range:
Round - 40mm
Square - 30mm
Maximum Internal Clamping Range:
Round - 65mm
Square - 55mm
External Clamping Range (Round): - 50-85mm
