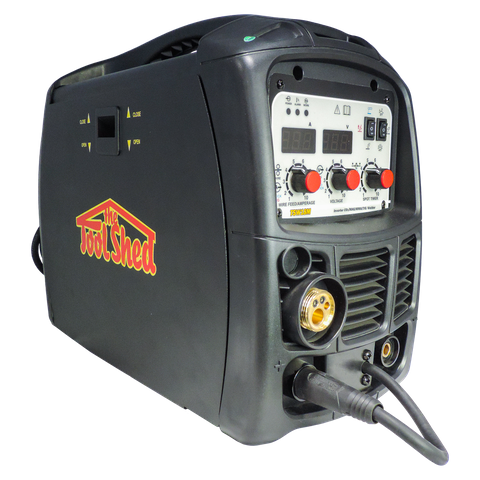

ToolShed Inverter MIG/TIG/ARC Welder 180 Amp

Code:
TSW18M
(3 reviews)
Check availability in store
WAS:
$999.00 Inc GST
NOW:
$899.00 Inc GST
Sale Ends 26/12/24

Description

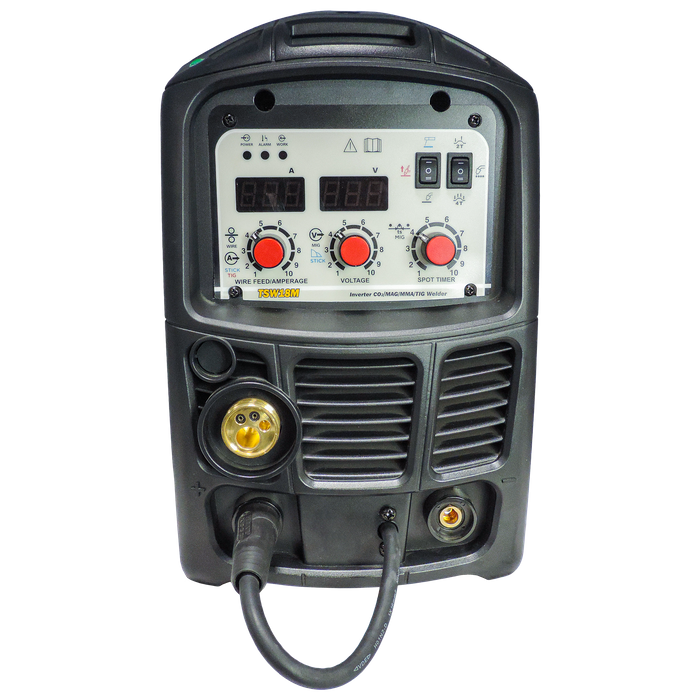

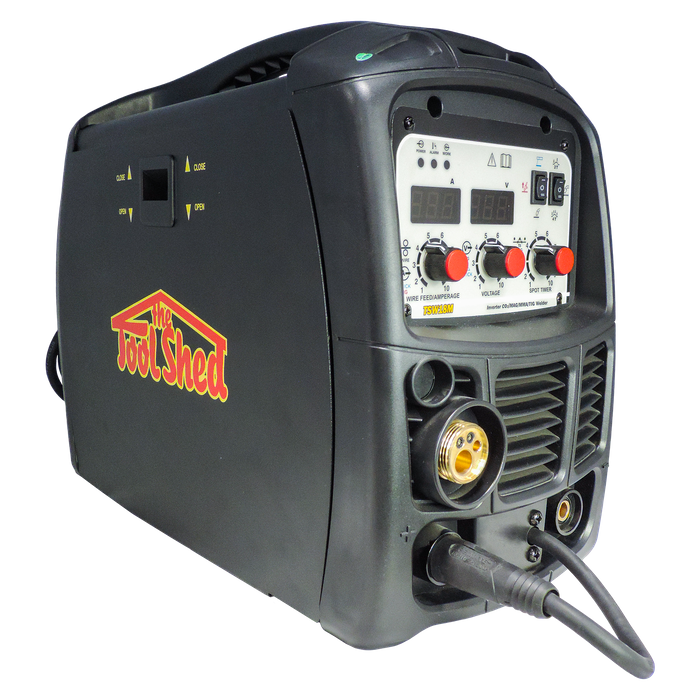

ToolShed Inverter Portable MIG/TIG/ARC Welder

The ToolShed 180 Amp single phase DC Inverter MIG welder has been designed and manufactured for use within the industry and comes packed full of features.

The ToolShed MIG 180 welder is a great multipurpose welding machine that is suitable for onsite welders, repair workshops, automotive workshops, and farm workshops.

It offers the user -
A 180-amp DC gas/gasless MIG welder
Plus, a 150-amp DC Arc welder (lead included)
Plus, a 180-amp DC TIG welder (lead included)


This MIG welder is fitted with a high-quality wire feed system. This machine is very smooth and doesn't encounter the problems often found with cheaper wire feed units. It is also fitted with fine voltage/current controls which are extremely smooth to weld with and are a pleasure to use. The output current goes as low as 30 amps which makes it ideal for small panel-steel work. Also included is a two touch/four touch switch.
Its polarity can also be reversed easily so that gas and gasless wire can be used and can take up to 5kg spools of MIG wire. With the flick of a switch and attachment of the arc lead, this machine can be set up as a full DC arc welder, offering a current range from 30-150 Amps. This is suitable for running electrodes from 2 - 3.2mm. This machine also comes with the ability to connect a TIG torch, allowing you to TIG weld from 20-180 amps in DC. Suitable for mild steel and stainless steel.

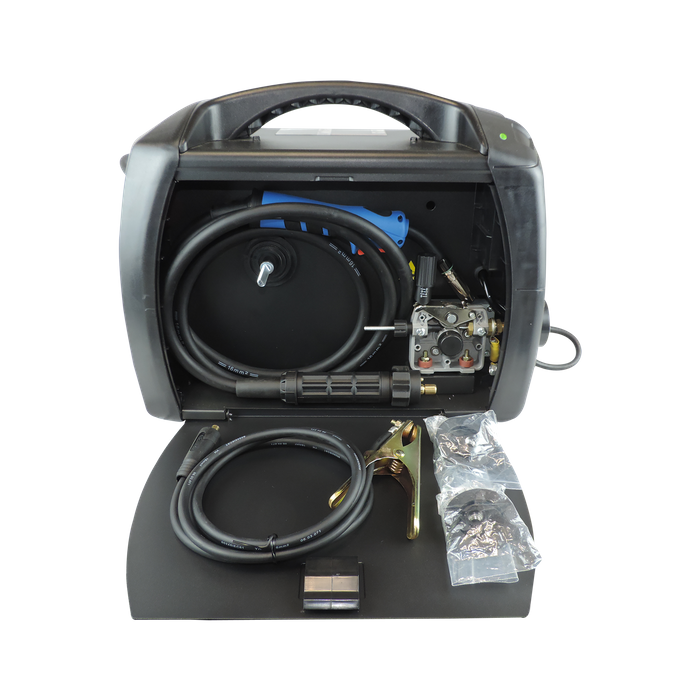

It comes with heavy duty earth leads with dinse (quick change bayonet style) connectors, as well as a 3m 150amp Binzel style Eurofit MIG torch. It also comes complete with consumables to get you started. The superior design lets you control all the modes of this machine within seconds.

The rated duty cycle is 25% at 180 Amps. It is fan cooled with over temperature cut out to protect it.

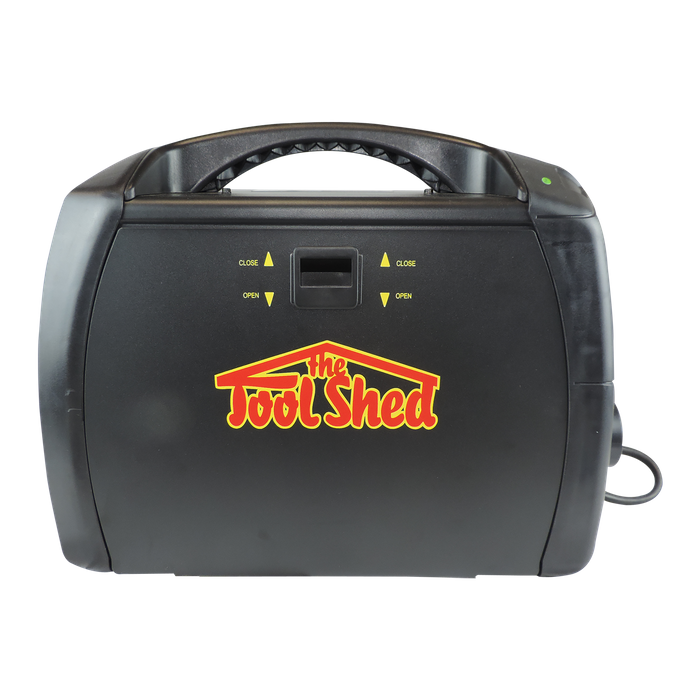

All this is housed in a lightweight package with a carry handle - weighing just 17Kg.

All ToolShed Inverter welding machines are manufactured with latest inverter technology. They are far more efficient, more reliable, faster and have higher current handling capabilities than transformer and other inverter systems.

Please find a simple guide for what this machine can be expected to weld in mild steel in MIG mode:
Welding current range Wire size Material Thickness
30 to 60A 0.6mm 1 to 3mm
60 to 120A 0.8mm 3 to 5mm
120 to 180A 0.9mm 5 to 10mm

Below is a simple guide for what this machine can be expected to weld in mild steel in the arc welding mode:
Welding current range Electrode Diameter Material Thickness
40 to 70A 2.0mm up to 3mm
55 to 90A 2.5mm up to 5mm
90 to 150A 3.2mm up to 10mm

Please note that this machine has been fitted with a 15 Amp plug to comply with NZ electrical regulations due to its high-power consumption. This machine will not plug into a standard 3 pin 10 Amp power outlet, please contact an electrician for advice before operation.

Specifications
Voltage - 240v
Frequency - 50/60Hz
Current Range
20- 180Amp MIG Duty Cycle - 130A @ 60%
20-150Amp Arc
20-180Amp TIG
Lead lengths - 3m

Electrode Diameter
2 - 3.2mm Arc Rods
0.6-0.9mm MIG wire

Net Weight - 17Kg
