GEARWRENCH Punch And Chisel Set 27pc

Name: GEARWRENCH Punch And Chisel Set 27pc
Brand: GEARWRENCH
SKU: 82306
Price: 286.84 NZD
Availability: OutOfStock

Code:

82306

5 Stars 4 Stars 3 Stars 2 Stars 1 Star

(0 reviews)

Check availability in store

WAS:

$382.45 Inc GST

NOW:

$286.84 Inc GST

Sale Ends 26/12/24

This is not a stocked item and product may need to be ordered in.
Please allow 7-14 days for pick up in store or delivery.

Description

GEARWRENCH Punch And Chisel Set 27pc

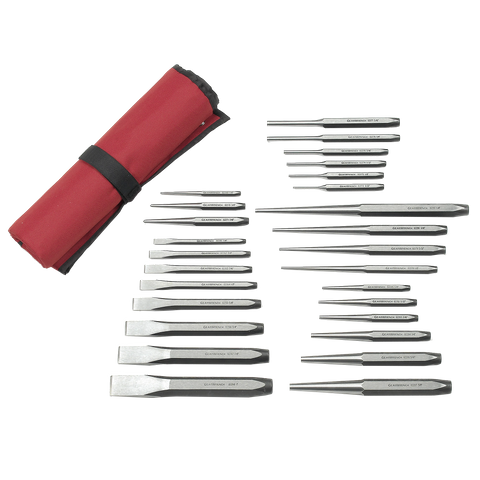

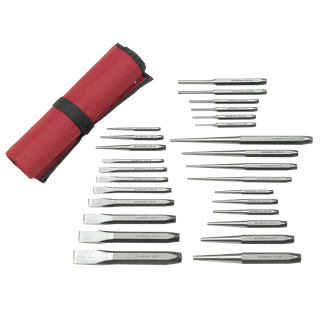

The GEARWRENCH 27-piece punch and chisel set includes: 8 cold chisels, 3 center punches, 6 pin punches, 4 long taper (drift) punches, 6 starter punches, and a cloth tool roll for storage. Use these cold chisels for cutting metal rivets, bolts, and nuts. Use the pin punch to drive out pins and rivets during final removal. The center punch is used for marking center lines, and pilot drill locations, while long taper punches are used to install and remove pins and shafts and to align holes. Use starter punches for both starting and installing pins and rivets.

Features
- Precision hardened chisels for cutting metal rivets, bolts, and nuts
- Pin punches for driving out pins and rivets during final removal
- Center punches for marking center lines or pilot drill locations
- Long taper punch lets you install or remove pins and shafts, and aligns holes with ease
- Starter punches for both starting and installing pins or rivets
- Includes tool roll for storage and organization

Specifications
ASME Specification : B107.47/B107.48
Size : Center Punches: 15/16 in x 4-1/4 in 5/32 in x 5 in 1/4 in x 5-1/2 in
Long Taper Punches: 1/8 in x 8 in 5/32 in x 8-1/2 in 3/16 in x 9 in 1/4 in x 11 in
Pin Punches: 3/32 in x 4-3/4 in 1/8 in x 5 in 5/32 in x 5-1/4 in
3/16 in x 5-1/2 in 1/4 in x 7 in 5/16 in x 7 in
Starter Punches: 5/32 in x 5 in 3/16 in x 5 in 1/4 in x 6 in 1/8 in x 4-1/2 in
5/16 in x 7 in 3/8 in x 8 in
Cold Chisels: 1/4 in x 4-3/4 in 3/8 in x 5 in 7/16 in x 5-1/2 in 1/2 in x 6 in
5/8 in x 6-1/2 in 3/4 in x 7 in 7/8 in x 7-1/2 in 1 in x 8 in
ANSI Specification : B107.47M-1998/B107.48M-1998
Packaging : Bagged
Finish : Phosphate Coated
Set Size Range Min : 3/32 in
Set Size Range Max : 1 in
Included Storage : Tool Roll
Set Piece Count : 27
Material : Alloy Steel
