ToolShed 4 Jaw Chuck for TSL07

Code:
XTSL07-4JC
NOW:
$310.00 Inc GST
Unavailable for Online Purchase

Description

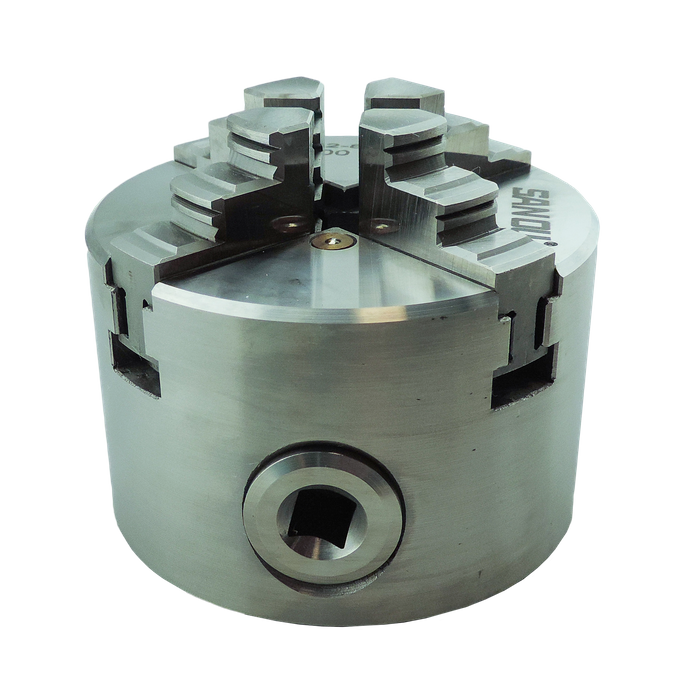

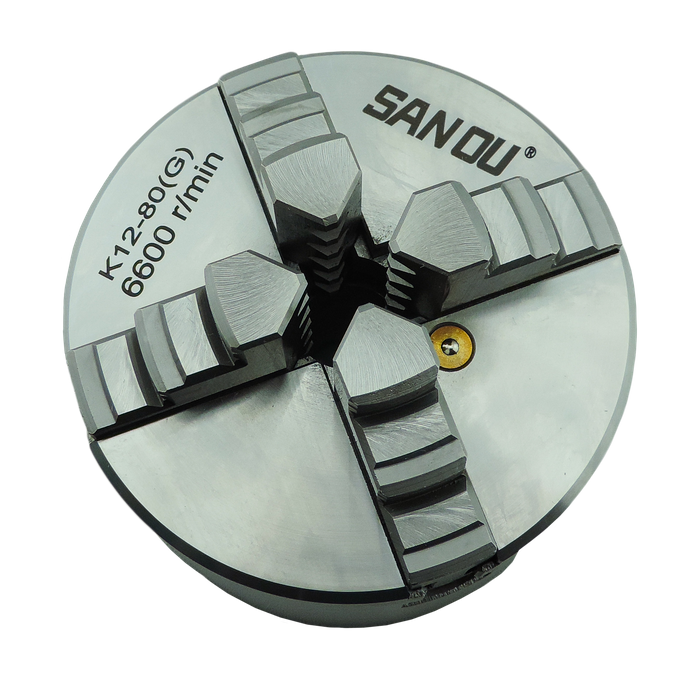

ToolShed 4 Jaw Chuck for TSL07 ToolShed Mini Engineers Lathe

The ToolShed's 4 Jaw Chuck is a precision-engineered accessory designed exclusively for the TSL07 ToolShed Mini Engineers Lathe. With an impressive chuck diameter of 80mm and versatile clamping capabilities, this chuck is a must-have for all your machining needs. The internal jaw clamping range spans from 2mm to 22mm, and the external jaw clamping range covers 22mm to 63mm.

When it comes to the need for a 4-jaw chuck, the extra installation effort is worth it. While 3-jaw chucks are excellent for speed and convenience, 4-jaw chucks offer superior versatility and precision. The added jaw provides more control and balance, making it perfect for irregularly shaped or non-symmetrical workpieces. This enhanced control minimises vibration and ensures that your workpiece is securely held, even when dealing with non-standard geometries.

SPECIFICATIONS:
Chuck Diameter - 80mm
Internal Jaw Clamping Range: 2-22mm
External Jaw Clamping Range: 22-63mm
IP Rating - IP65
Max torque input: 40Nm
Max. Speed: 6600RPM
Max static gripping diameter: 10KN

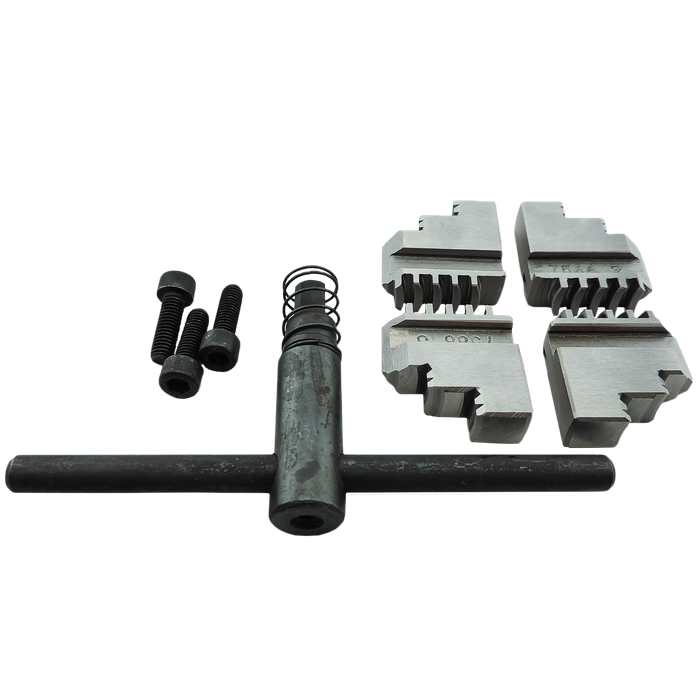

SET INCLUDES:
1 X Set of Outside Hard Jaws
1 X Set of Inside Hard Jaws
1 X Chuck Key
1 X Set of Mounting Screws
