Milwaukee M12 Cross Line Laser 3x 360deg 3 Plane Green Beam 12v 4Ah

Code:
M123PLA401C
(0 reviews)
Check availability in store
WAS:
$1,454.00 Inc GST
Price valid until 25/11/24

This is not a stocked item and product may need to be ordered in.
Please allow 7-14 days for pick up in store or delivery.

Description

The M12™ 3 Plane Laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool. Powered by our M12™ batteries, users will get 15hours of continuous run-time with a M12B4 battery pack for ultimate productivity. The high-intensity green laser ofers users superior visibility up to 38m for long-range applications. The integrated bracket features a micro control and pivots on plumb point for easy and fast alignment. The M12™ 3 Plane Laser features amplified rare earth magnets, providing a strong hold onto metal surfaces with the integrated screw and nail hang holes allowing easy and efcient setup in any environment.

Features:
- 15 hours of runtime on a single charge using using M12™ REDLITHIUM™-ION 3.0Ah battery
- Visibility range of up to 38 m
- High intensity green beams provide up to 4x the brightness compared to red lasers
- 1m drop rating
- IP 54 rating to protect the laser from harsh jobsite conditions
- 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport
- 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment
- Fuel gauge on the top and side of the laser allows for fast checking of battery charge
- Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8? tripod thread and hang hole allows for attachment to steel stud, wooden stud and tripod (48351411)

Specifications:
Range with Detector - 50m
Working Range - 38m
Number of Beams - 3 Plane
Accuracy - ± 3.18mm over 10m
Thread Mount - 1/4"-20, 5/8"-11
Locking Pendulum - Yes
Self-Leveling - ± 4° Tilt
IP Rating - IP54
Impact Resistant - 1m
Dimensions - 198 x 104 x 165mm
Weight (Tool only) - 1.09kg

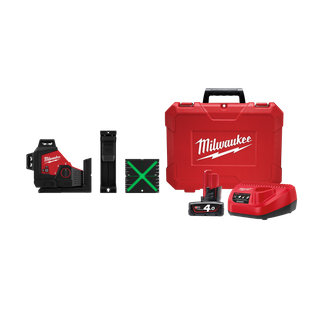

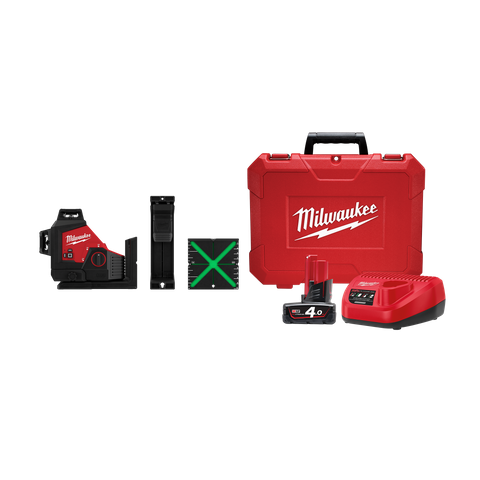

Includes
1 x M12 3 Plane Laser (M123PLA)
1 x M12 REDLITHIUM 4Ah Battery (M12B4)
1 x M12 Charger (C12C)
1 x Laser Track Clip with Quick Connect
1 x Laser Trget Plate
1 x Carrying Case

The ToolShed is an authorised dealer of Milwaukee tools. All products come with a full New Zealand manufacturers warranty.

Register your Milwaukee tools here >> Milwaukee Product Registration

Claim Milwaukee redemption deals here >> Milwaukee Redemptions

Many Milwaukee products have been factory customized to New Zealand specifications. Servicing and parts are available at any of our ToolShed stores nationwide. Buy from The ToolShed with confidence.
