ToolShed Air Compressor Belt Drive 10HP 270 Litre

Code:
TSACB3
(0 reviews)
Check availability in store
NOW:
$3,299.00 Inc GST

Description

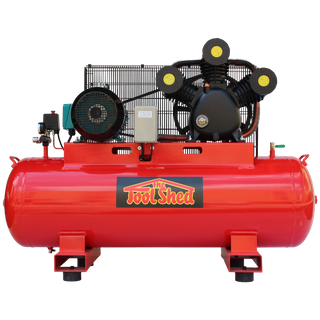

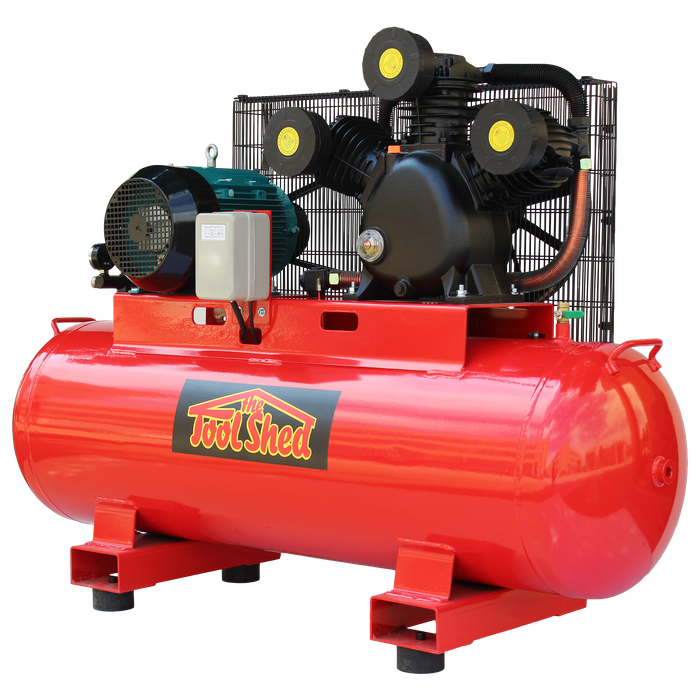

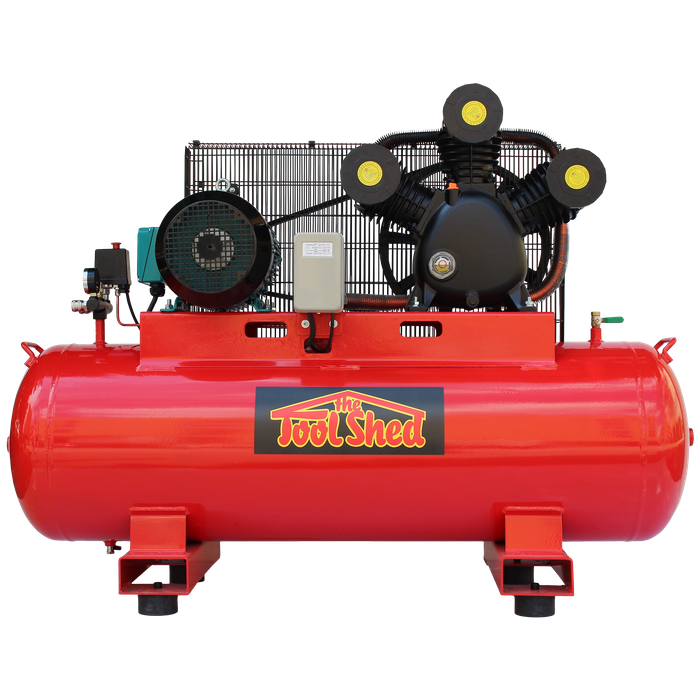

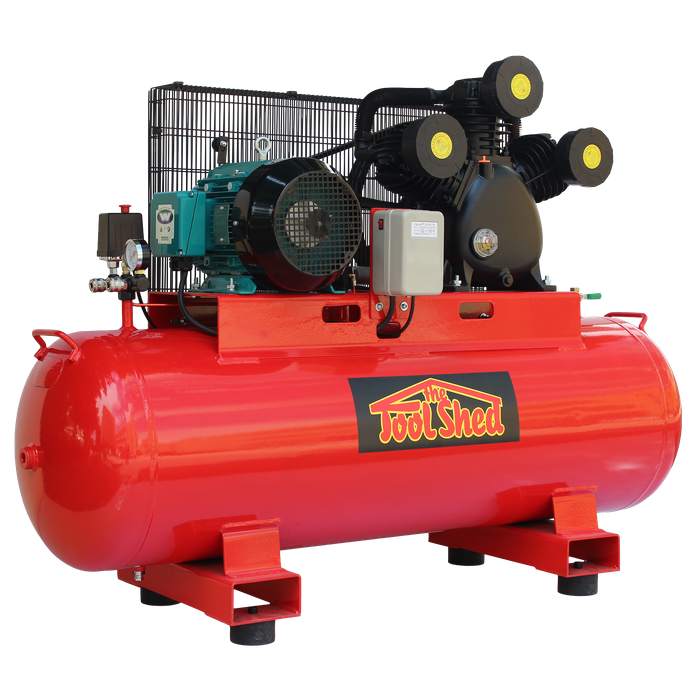

ToolShed Air Compressor Belt Drive 10HP 270 Litre

The ToolShed Air Compressor Belt Drive 10HP 270 Litre is a powerhouse designed for the most demanding tasks in your workshop or job site. This heavy-duty air compressor is equipped with dual gauges, providing precise monitoring of both your pressure reserves and the pressure currently in use, ensuring you have complete control over your operations. The belt-driven design not only contributes to its compactness but also ensures quieter operation, making it ideal for both industrial and professional environments.

Stability and vibration control are key aspects of the ToolShed Air Compressor, which is mounted on four rubber feet that effectively absorb vibrations and secure the unit in place. For even greater convenience, the compressor features forklift grooves on the bottom, allowing for effortless manoeuvrability around your worksite. The ARO style coupling simplifies connections with a wide range of tools, enhancing its versatility.

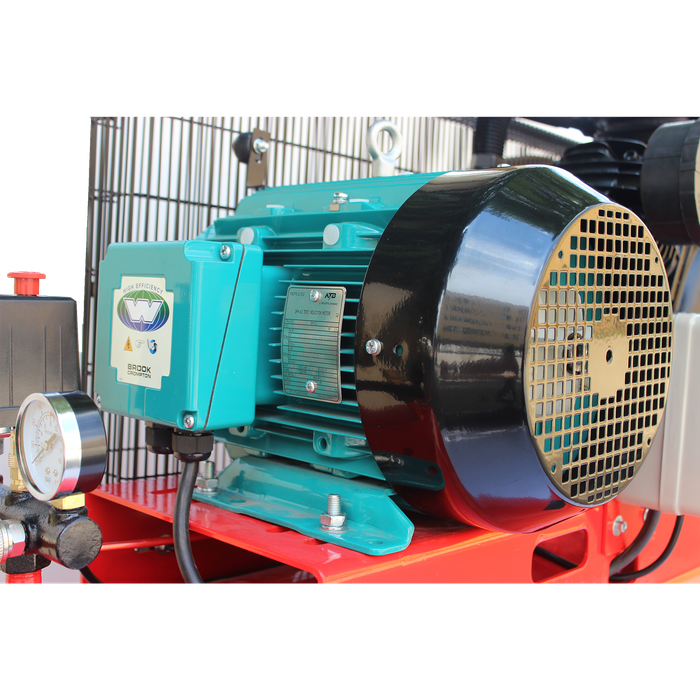

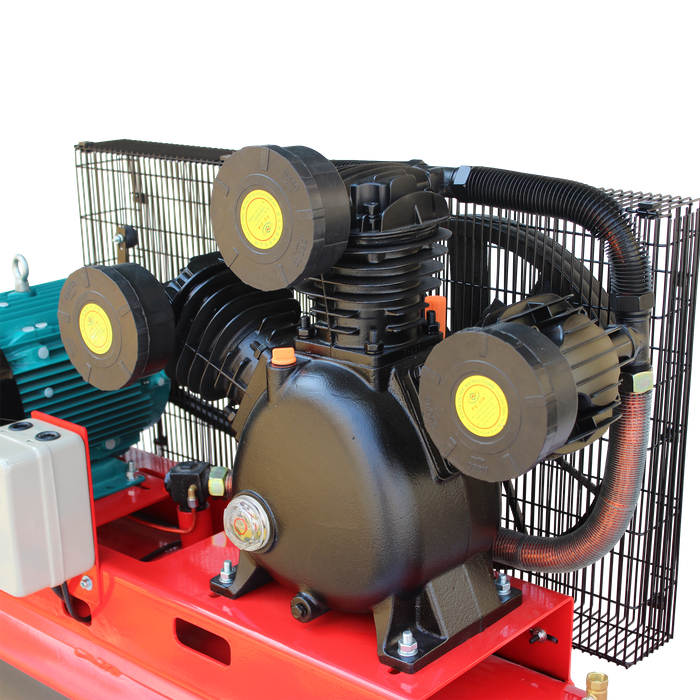

This air compressor is powered by a robust 10 HP motor with a speed of 2900 RPM, driving three cylinders at a pump speed of 900 RPM. It boasts an impressive displacement of 40.6 CFM (1150 LPM) and a free air delivery of 30 CFM (850 LPM) at 100 PSI. The large 270-litre tank ensures ample capacity for extended periods of use. With overall dimensions of 1550 x 50 x 1050 cm and a piston size of 95mm, this unit is designed for efficiency and durability.

Features

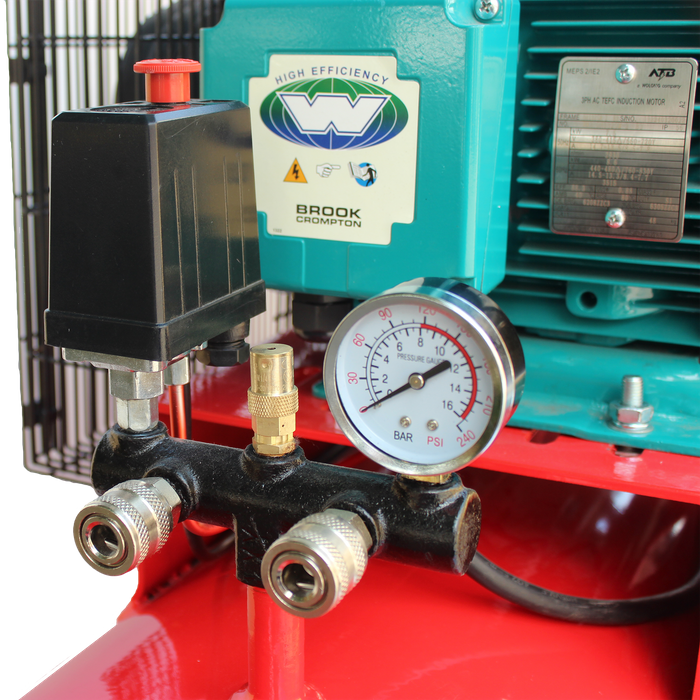

- Dual gauges show your pressure reserves, as well as the pressure currently in use.
- Belt driven model makes it quiet and compact.

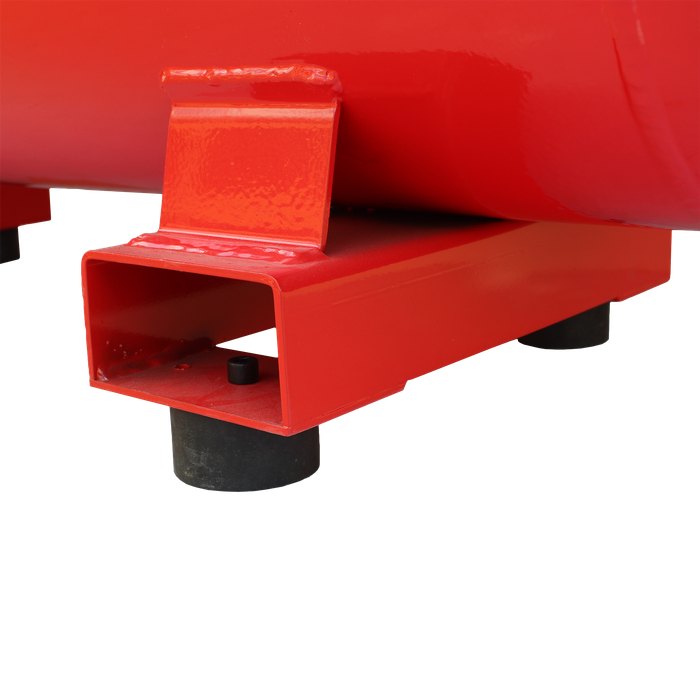

- Mounted on four rubber feet for vibration absorption and secure placement.
- Features forklift grooves on the bottom for easy manoeuvrability.
- ARO style coupling for ease in connecting most tools.

Specifications
Motor Size - 10 HP
Cylinders - 3
Motor Speed - 2900 RPM
Pump Speed - 900 RPM
Tank Size - 270 Litres
Displacement - 40.6 CFM | 1150 LPM
Free Air Delivery @ 100 PSI - 30 CFM | 850 LPM
Voltage - 400 Volts
Dimensions Over Handles - 1550 x 500 x 1050 mm
Piston Size - 95mm
