ToolShed Network Cable Tracer

Code:
TSNCT
WAS:
$99.00 Inc GST
NOW:
$84.15 Inc GST
Sale Ends 26/12/24

Description

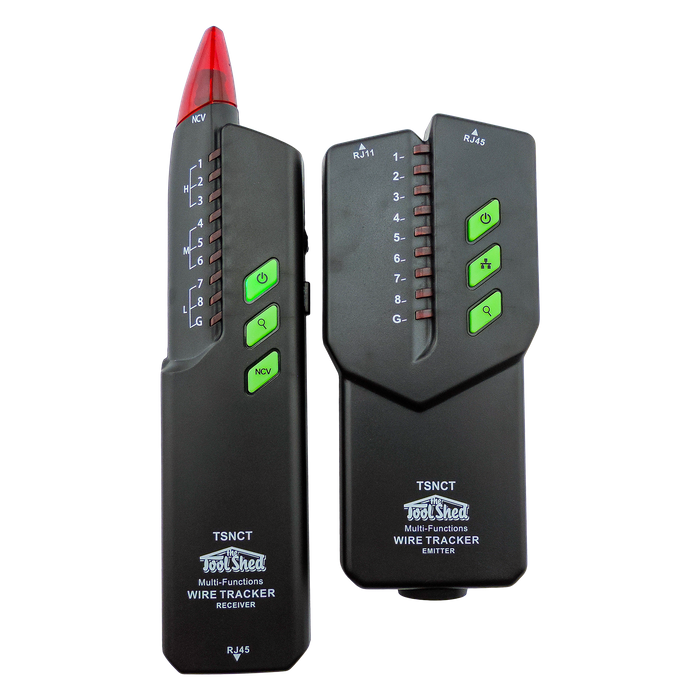

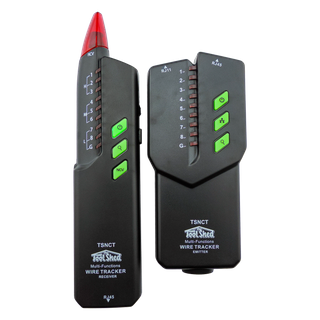

ToolShed Network Cable Tracer

The ToolShed Network Cable Tracer is an essential tool for telecom engineers, cabling professionals, and network maintenance technicians. With an impressive 300-metre emitting signal range, it enables efficient cable tracing over long distances. Equipped with a 200mm signal lead featuring alligator clips and 190mm modular leads with RJ11 and RJ45 plugs, this tool simplifies cable testing and tracing tasks. It efficiently detects short circuits, open circuits, misalignments, reverse connections, and other network cable issues. For use in noisy environments, the tracer comes with headphones to enhance signal detection.

Housed in a convenient canvas carry case, the tool is both portable and secure, keeping the leads and units neatly organised. The built-in LED work light, with an easy On/Off button, ensures proper illumination in dimly lit work areas. Additionally, the device includes non-contact AC voltage detection up to 48 volts and allows cable hunting without needing to strip the line sheath. This all-in-one tool offers convenience and precision for network troubleshooting and testing tasks.

Features
- The signal lead is 200mm long and terminated with alligator clips.
- Emitting Signal Distance up to 300 metres.

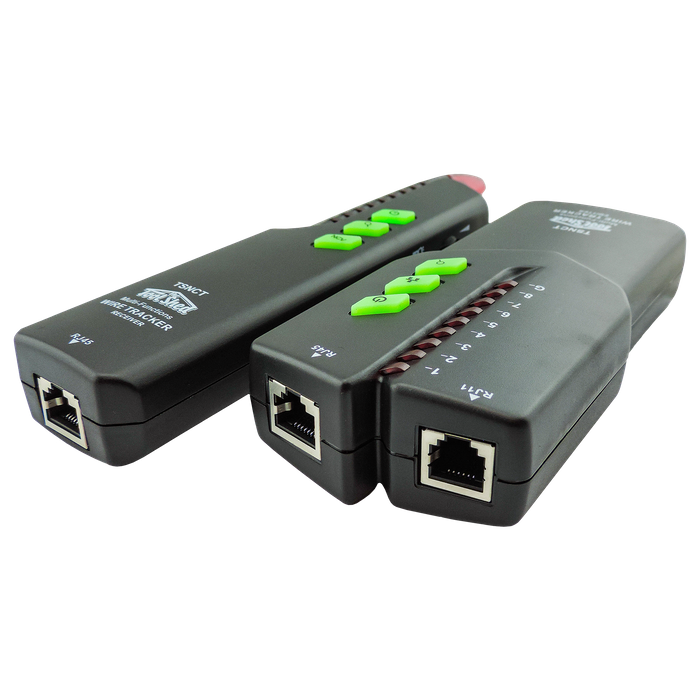

- The modular leads are 190mm long and terminated with RJ11 and RJ45 plugs.
- Comes supplied with headphones for more effective signal detection in noisy environments.

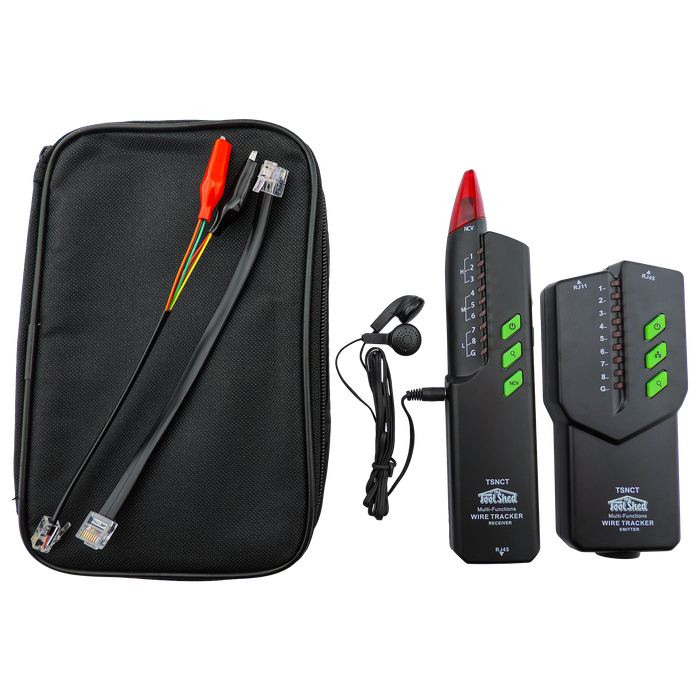

- Housed in a tidy canvas carry case to keep the leads and units secure.
- Detects short circuits, open circuits, and misalignments, reverse connections, and other issues in network cables.

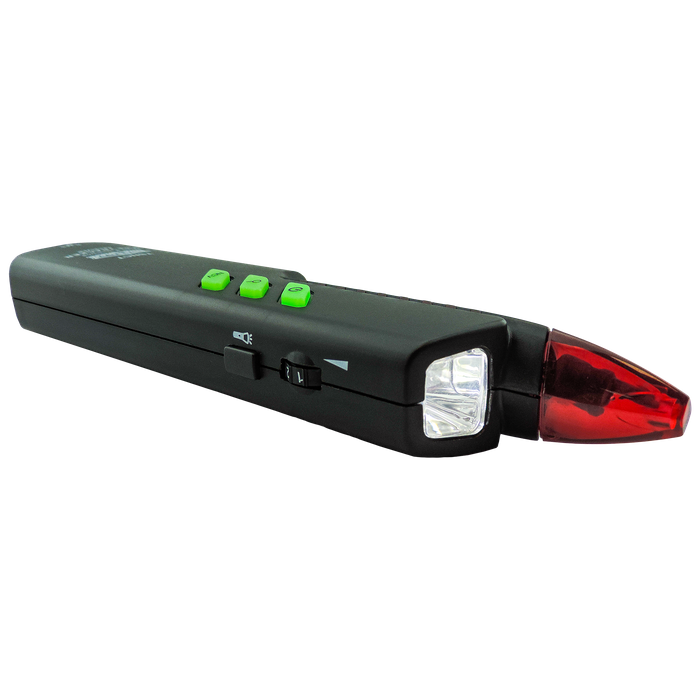

- Features an LED work light with an On/Off button to illuminate your work area.

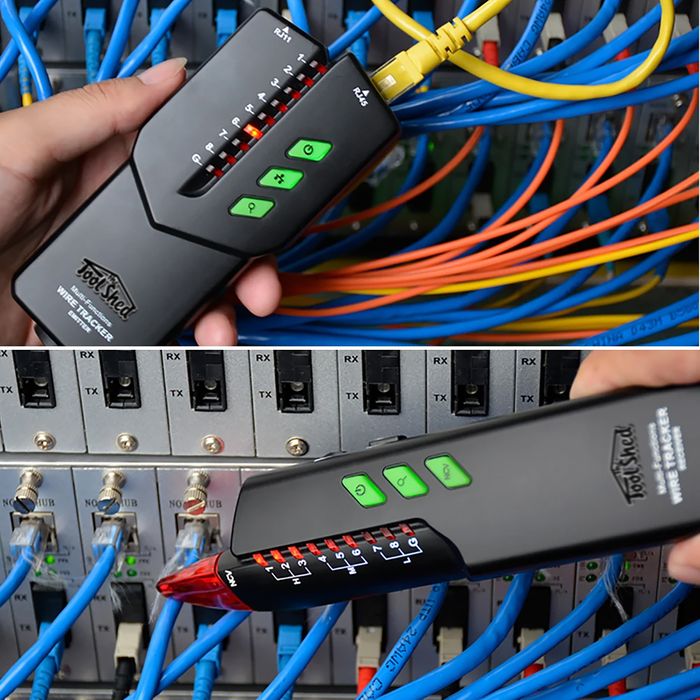

- A necessary testing instrument for Telecom engineering personnel, cabling engineers, and network maintenance professionals.
- Non-Contact AC Voltage Detection Function up to 48 Volts.
- Can perform cable hunting without the need to strip the line sheath.

Specifications
Emitting Signal Distance - 0-300 metres
Net Weight - 0.34kg
Receiver Dimensions (LxWxD) - 190 x 40 x 23mm
Launcher Dimensions (LxWxD) - 140 x 60 x 25mm
