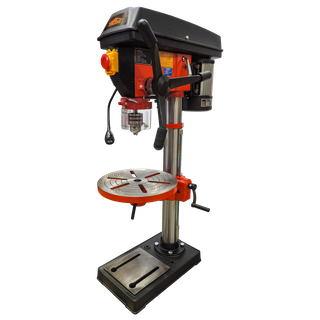

ToolShed Drill Press 16mm Bench Mount 3/4hp

ToolShed Drill Press 16mm Bench Mount 3/4hp

Name: ToolShed Drill Press 16mm Bench Mount 3/4hp
Brand: ToolShed
SKU: TSDP22
Price: 399.00 NZD
Availability: InStock

Code:

TSDP22

5 Stars 4 Stars 3 Stars 2 Stars 1 Star

(0 reviews)

Check availability in store

NOW:

$399.00 Inc GST

Description

ToolShed Drill Press 16mm Bench Mount 3/4hp

The ToolShed Drill Press 16mm 3/4hp is designed to be mounted on the bench, it is small in size, but packed with features designed for both professional and home workshops. This drill press offers exceptional functionality and precision, making it an essential addition to any bench.

Despite its small size, the ToolShed Drill Press boasts a fully adjustable worktable that can be moved up and down and tilted left and right with a tilt scale for precise angled drilling. The larger 250mm diameter worktable includes integrated clamp slots for secure workpiece handling. A built-in depth stop with a scale on the pinion shaft ensures consistent drilling depths, while the integrated LED work light enhances visibility for precision work.

With five spindle speeds ranging from 180 to 3320 RPM, this drill press is versatile enough to handle a variety of materials including wood, metals, and plastics. The ergonomic 3-handle feed wheel facilitates smoother operation, while safety features like the Emergency stop button and chuck guard provide added protection.
For precise alignment and accuracy, the drill press includes a laser line guidance system that projects X and Y axis lines onto your workpiece, ensuring precise alignment and drilling accuracy. Speed adjustments are made easy with a quick reference chart and a convenient belt tension release knob. Constructed from heavy-duty steel and cast iron, the ToolShed Drill Press is built for durability and long-lasting performance.

Features
- The worktable is fully adjustable up and down, and tiltable to the left and right with a tilt scale provided.
- Larger 250mm diameter work table with integrated clamp slots
- Features a built-in depth stop with a scale on the pinion shaft.
- A built-in LED work light that makes precision work that much easier.
- It has five different spindle speeds ranging from 180-3320 RPM.
- Features an ergonomic 3-handle feed wheel making the job easier.
- Stand-out safety features such as an Emergency stop button and chuck guard.
- Able to drill into wood, metals, plastics, and a host of materials in between.
- Features laser line guidance system that projects X and Y axis lines onto your workpiece.
- Quick reference chart and a convenient belt tension release knob for rapid speed adjustments.
- Constructed of heavy-duty steel and cast iron.

Specifications
Motor Size - 3/4hp | 559 Watts
Maximum Drilling Diameter - 16mm Ø
Chuck Capacity - 3-16mm
Spindle-Column Distance - 162.5mm
Spindle-Table Distance - 450mm
Spindle-Base Distance - 630mm
Table Size - 250 x 250mm
Base Size - 420 x 250mm
Swing - 325mm
Spindle Taper - MT2
